LD4 & LD6 MACHINE
landing drill machine
LD4 and LD6 MACHINE
The LD-4 Machine is a drilling machine designed for the stone industry with a focus on drilling holes in the horizontal and vertical planes of marble and granite. The LD-4 making it suitable for various application such as line drilling, blast hole drilling. The machine is known for its specially in task like splitting large stone ,blocks and for its user-friendly design. also control panel ,often designed for single user operator.
Versatility oil based LD-4 , Grease based LD-4 machine and newly ld-6 machine.
Introducing the Oil based LD4 and Grease based LD4,LD6 Machine

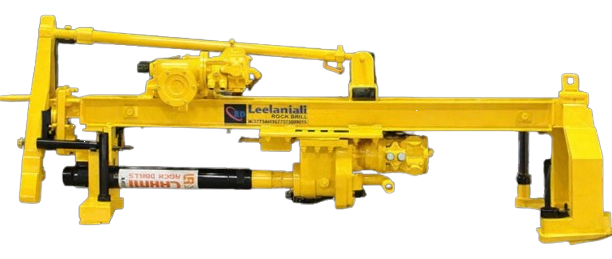

Oil Type LD4: Lightweight and Agile
technical details:
| Hole diameter | 3 inches – 7 inches (75mm -177mm) |
|---|---|
| Vertical drilling depth | 30 meters |
| Horizontal drilling depth | 20 meters |
| Drill pipe diameter | 76 mm / 62 mm |
| Drill pipe length | 1.5 meters (4 feet) (can be customized) |
| Pneumatic motor power | 4.5 hp / 6 hp |
| Minimum required pressure | 7 bar – 10 bar |
| Approx weight | 600 kg |
| Chassis | 4 inch / 5 inch |
Specifications:
- The Oil Type LD4 model is built on a sturdy 4″ chassis, combining lightweight design with agile performance for various quarrying applications.
- Capable of drilling 4.5″ diameter holes to a depth of 25 meters, both vertically and horizontally, this model offers versatility and maneuverability to tackle a wide range of drilling tasks with ease.

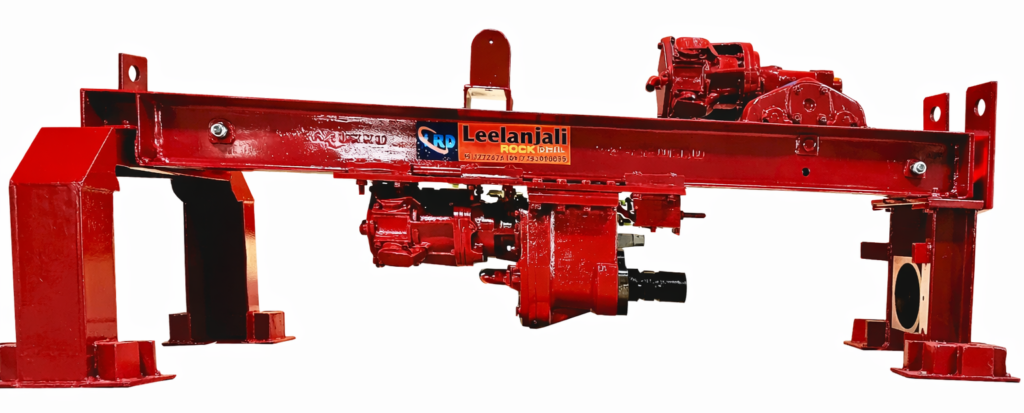

Grease Type LD4: Rigid and Efficient
Specifications:
- The Grease Type LD4 model is constructed on a robust 5″ chassis, renowned for its rigidity and drilling efficiency, designed to excel in demanding quarry operations.
- With the ability to drill 4.5″ diameter holes to a depth of 25 meters, both vertically and horizontally, this model delivers superior stability, precision, and drilling speed, ensuring maximum productivity and performance
- It provides up to 30% faster drilling than the Oil Type LD4 and has far less lubricating oil consumption compared to oil type LD4 saving significant time and money.
Technical details:
| Hole diameter | 3 inches – 7 inches (75mm -177mm) |
|---|---|
| Vertical drilling depth | 30 meters |
| Horizontal drilling depth | 20 meters |
| Drill pipe diameter | 76 mm / 62 mm |
| Drill pipe length | 1.5 meters (4 feet) (can be customized) |
| Pneumatic motor power | 4.5 hp |
| Minimum required pressure | 7 bar |
| Approx weight | 700 kg |
| Chassis | 5 inch |

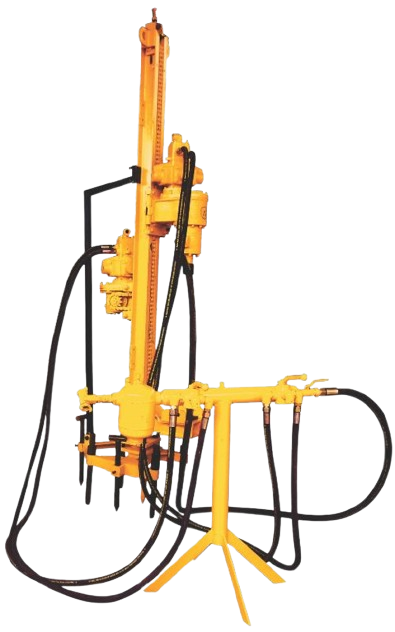

LD-6 FAST DRILLING MACHINE
This machine Is used for drilling In quarry. Its a heavy duty machinel. it can drill both vertical and horizonal hole. the ld-6 machine is designed as an altrenative to crawler machine,both perfrom the same work, but ld-6 machine is budgetfriendly.
TECHNICAL DETAILS:
| ld-6 lenght | 9 fit |
|---|---|
| vetical drilling depth | 150 fit (max.) |
| Horizontal drilling depth | 90 fit (max.) |
| Drill rod lenght | 1.5 meter (4 fit) |
| Approx weight | 1000-1200kg |
| Chassis | 4.5 HP |

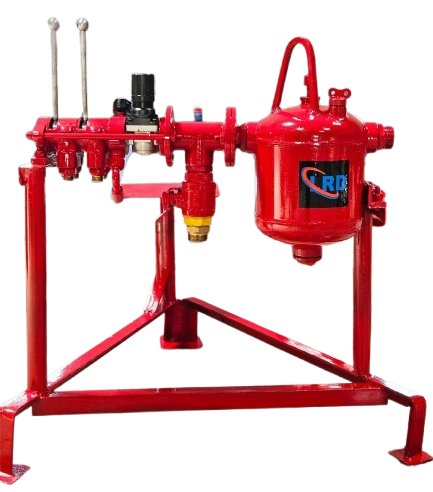

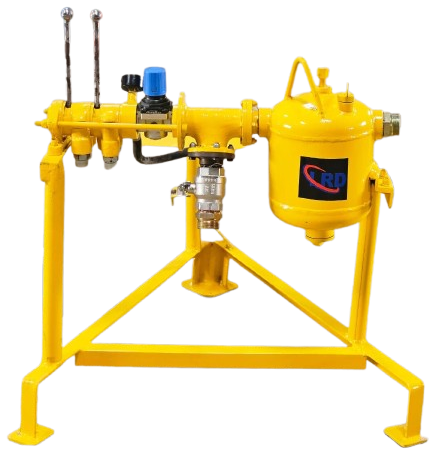

ld-6 Lubary penal
This is the control panel espacally designed for operate the ld-6 machine with its help, even a single person can easily manage the machine.
Highlighting Construction Excellence
Both models are not just distinguished by their drilling capabilities but are also engineered on robust chassis meticulously designed to ensure optimal performance and durability. What sets our machines apart is that they are manufactured entirely in-house using state-of-the-art automated CNC machines.
Choosing the Right Model for Your Needs
Whether you prioritize agility and versatility or require maximum rigidity and efficiency, Somani Industries offers the perfect rock drill machine to meet your specific requirements. Both the Oil Type LD4 and Grease Type LD4 models are engineered to deliver exceptional performance and reliability, ensuring optimal results in your quarrying operations.
Experience Unrivaled Performance with Somani Industries Rock Drill Machines
With our commitment to excellence and innovation, Somani Industries continues to be a trusted partner for quarry operators seeking superior rock drilling solutions. Our Oil Type LD4 and Grease Type LD4 models redefine industry standards, delivering unmatched performance, versatility, and efficiency to drive success in stone quarrying operations worldwide.
